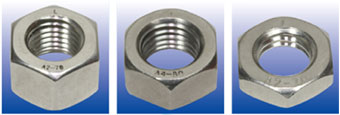

DIN Hexagon Nuts




DIN Hexagon Nuts

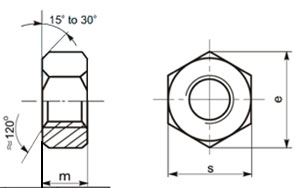

Thread size M2 M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27
Pitch 0.4 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3 3
smax 4 5.5 7 8 10 13 17/16* 19/18* 22/21* 24 27 30 32/34* 36 41
emin 4.32 6.01 7.66 8.79 11.05 14.38 18.9/17. 21.1/20. 24.49/23 26.75 29.56 32.95 35.03/37 39.55 45.2
m max DIN 934 1.6 2.4 3.2 4.0 5.0 6.5 8.0 10.0 11.0 13.0 15.0 16.0 18.0 19.0 22.0
DIN B439 1.2 1.8 2.2 2.7 3.2 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.5
DIN 936           5.0 6.0 7.0 8.0 8.0 9.0 9.0 10.0 10.0 12.0
DIN 555       4.0 5.0 6.5 8.0 10.0   13.0   16.0 18.0 19.0 22.0
UNI 5587 2.0 3.0 4.0 5.0 6.0 8 10 12.0 14.0 16 18.0 20 22.0 24.0 27.0
ISO 4032 1.6 2.4 3.2 4.7 5.2 6.8 8.4 10.8 12.8 14.8 15.8 18.0 19.4 21.5 23.8
ISO 4033       5.1 5.7 7.5 9.3 12.0 14.5 16.4   20.3   23.9
ISO 4034       5.6 6.1 7.9 9.5 12.2 13.4 15.9 16.4 19.0 20.2 22.3 24.7
ISO 4035 1.2 1.8 2.2 2.7 3.2 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.5

Thread size M30 M33 M36 M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80
Pitch 3.5 3.5 4 4 4.5 4.5 5 5 5.5 5.5 6 6 6 6 6
smax 46 50 55 60 65 70 75 80 85 90 95 100 105 110 115
emin 50.85 55.37 60.79 66.44 71.3 76.95 82.6 88.25 93.56 99.21 104.86 110.51 116.16 121.81 127.46
mmax DIN 934 24.0 26.0 29.0 31.0 34.0 36.0 38.0 42.0 45.0 48.0 51.0 54.0 58.0 61.0 64.0
DIN B439 15.0 16.5 18.0 19.5 21.0 22.5 24.0 26.0
DIN 936 12.0 14.0 14.0 16.0 16.0 18.0 18.0 20.0
DIN 555 24.0 26.0 29.0 31.0 34.0 36.0 38.0 42.0 45.0 48.0 51.0   58.0   64.0
UNI 5587 30 33.0 36 39.0 42.0 45.0 48.0 52.0 56.0 60.0 64.0 68.0 72.0 76.0 80.0
ISO 4032 25.6 28.7 31.0 33.4 34.0 36.0 38.0 42.0 45.0 48.0 51.0
ISO 4033 28.6   34.7
ISO 4034 26.4 29.5 31.9 34.3 34.9 36.9 38.9 42.9 45.9 48.9 52.4
ISO 4035 15.0 16.5 18.0 19.5 21.0 22.5 24.0 26.0 28.0 30.0 32.0

Thread size M85 M90 M100 M110 M125 M140 M160
Pitch 6 6 6 6 6 6 6
smax 120 130 145 155 180 200 230
emin 133.11 144.08 161.02 172.32 200.57 220.80 254.70
mmax DIN 934 68.0 72.0 80.0 88.0 100.0 112.0 128.0
DIN B439
DIN 936
DIN 555   72.0 80.0
UNI 5587 85.0 90.0 100.0 110.0 125.0 140.0 160.0
ISO 4032
ISO 4033
ISO 4034
ISO 4035
