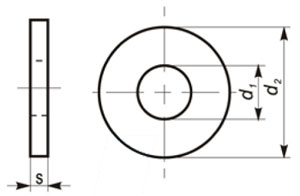

DIN 9021 Washer Outside Diameter = 3 X Bolt Diameter

Size

M3

M3.5

M4

M5

M6

M7

M8

M10

M12

M14

M16

M18

M20

M22

M24

M30

d₁

3.2

3.7

4.3

5.3

6.4

7.4

8.4

10.5

13

15

17

19

21

24

26

33

d2

9

11

12

15

18

22

25

30

40

45

50

56

60

66

72

92

s

0.8

0.8

1

1.6

1.6

2

2

2.5

3

3

3

4

4

5

5

6
