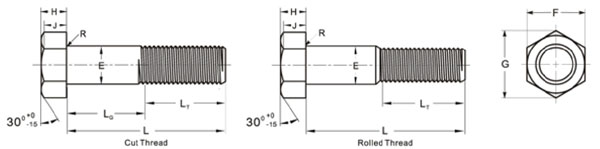

AS ME B18.2.1-1996 Heavy Hex Bolts

Thread size

1/2

5/8

3/4

7/8

1

1 1/8

1 1/4

1 3/8

1 1/2

1 3/4

2

2 1/4

2 1/2

2 3/4

3

F_max

7/8

1 11/1 6

1- 1/4

1- 7/16

1-5/8

1-13/16

2

2-3/16

2-3/8

2-3/4

3-1/8

3-1/2

3-7/8

4-1/4

4-5/8

G_min

0.969

1.175

1.383

1.589

1.796

2.002

2.209

2.416

2.622

3.035

3.449

3.862

4.275

4.688

5.102

H

11/ 32

27/64

1/2

37/64

43/64

3/4

27/32

29/32

1

1-5/32

1-11/32

1-1/2

1-21/32

1-13/16

2

E_max

0.500

0.625

0.750

0.875

1.000

1.125

1.250

1.375

1.500

1.750

2.000

2.250

2.500

2.750

3. 000

E_min

0.482

0.605

0.729

0.852

0.976

1.098

1.223

1.345

1.470

1.716

1.964

2.214

2.461

2.711

2.961

Rmin Radius of Fillet

0.01

0.02

0.02

0.02

0.03

0.03

0.03

0.03

0.03

0.04

0.04

0.06

0.06

0.06

0.06

L_T Thread Lngth.

1.250

1.500

1.750

2.000

2.250

2.500

2.750

3.000

3.250

3.750

4.250

4.750

5.250

5.750

6.250

1.500

1.750

2.000

2.250

2.500

2.750

3.000

3.250

3.500

4.000

4.500

5.000

5.500

6.000

6.500
