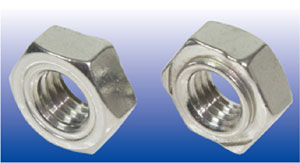

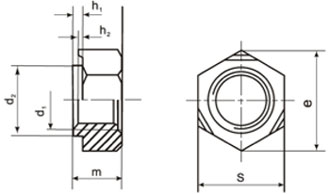

DIN 929 Hexagon Weld Nuts

Thread size

M3

M4

M5

M6

M7

M8

M10

M12

M14

M16

s_max

7.5

9

10

11

12

14

17

19

22

24

e_min

8.15

9.83

10.95

12.02

13.14

15.38

18.74

20.91

24.27

26.51

d₂

4.5

6

7

8

9

10.5

12.5

14.8

16.8

18.8

m

3

3.5

4

5

5.5

6.5

8

10

11

13

h₁

0.55

0.65

0.7

0.75

0.8

0.9

1.15

1.4

1.8

1.8

h₂

0.25

0.35

0.4

0.4

0.5

0.5

0.65

0.8

1

1
