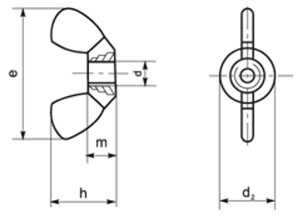

DIN 315  Wing Nuts American Form (AM.F.)



DIN 315 Wing Nuts American Form (AM.F.)



Thread size

M3

M4

M5

M6

M8

M10

M12

M14

M16

M18

M20

d2max

8.2

10.1

10.1

12.5

14.3

16.1

21.4

23.52

30.13

30.13

30.13

emax

19.5

23

23

28.2

31.5

37.5

48.7

48.7

69.6

69.6

69.6

hmax

9.1

11

11

13.2

15.5

17.5

23.5

24.9

36

36

36

mmax

3.5

4.4

4.4

5.4

5.9

6.8

8.4

9.81

13.87

13.87

13.87
