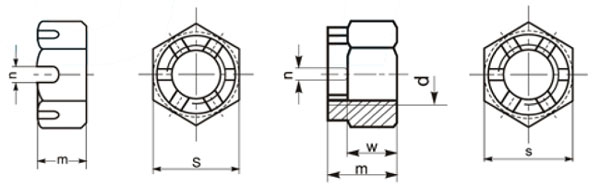

DIN 935 Hexagon Slotted Nuts and Castle Nuts

Thread size M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 smax 7 8 10 11 13 17 19 22 24 27 30 32 36 41 mmax 5 6 7.5 8 9.5 12 15 16 19 21 22 26 27 30 nmin 1.2 1.4 2 2 2.5 2.8 3.5 3.5 4.5 4.5 4.5 5.5 5.5 5.5 wmax 3.2 4 5   6.5 8 10 11 13 15 16 18 19 22

Thread size M30 M33 M36 M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 smax 46 50 55 60 65 70 75 80 85 90 95 100 105 110 mmax 33 35 38 40 46 48 50 54 57 63 66 69 73 76 nmin 7 7 7 7 9 9 9 9 9 11 11 11 11 11 wmax 24 26 29 31 34 36 38 42 45 48 51 54 58 61 Thread size M80 M85 M90 M100 smax 115 120 130 145 mmax 75 88 92 100 nmin 11 14 14 14 wmax 64 68 72 80
