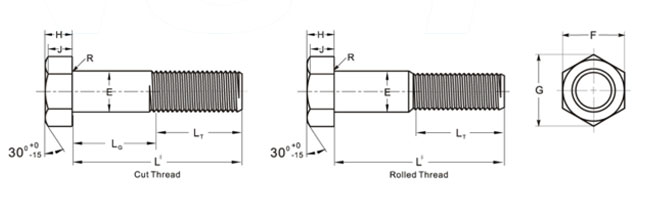

ASME B18.2.1-1996 Hex Bolts

Thread size

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

1

1 1/8

1 1/4

1 3/8

1 1/2

2

3

4

F_max

7/16

1/2

9/16

5/8

3/4

15/16

1 1/8

1 5/16

1 1/2

1 11/16

1 7/8

2 1/16

2 1/4

3

4 1/2

6

G_min

0.484

0.552

0.62

0.687

0.826

1.033

1.24

1.447

1.653

1.859

2.066

2.273

2.48

3.306

4.959

6.612

H

11/64

7/32

1/4

19/64

11/32

27/64

1/2

37/64

43/64

3/4

27/32

29/32

1

1 11/32

2

2 11/16

E_max

0.2600

0.3240

0.3880

0.4520

0.5150

0.6420

0.7680

0.8950

1.0220

1.1490

1.2770

1.4040

1.5310

2.0390

3.0810

4.111

E_min

0.2370

0.2980

0.3600

0.4210

0.4820

0.6050

0.7290

0.8520

0.9760

1.0980

1.2230

1.3450

1.4700

1.9640

2.9610

3.975

Rmin Radius of Fillet

0.01

0.01

0.01

0.01

0.01

0.02

0.02

0.02

0.03

0.03

0.03

0.03

0.03

0.04

0.06

0.06

L_T Thread Lngth.

L < 6 In.

0.750

0.875

1.000

1.125

1.250

1.500

1.750

2.000

2.250

2.500

2.750

3.000

3.250

5.250

6.250

8.250

L > 6 In.

1.000

1.125

1.250

1.375

1.500

1.750

2.000

2.250

2.500

2.750

3.000

3.250

3.500

4.500

6.500

8.500
