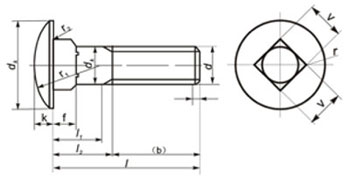

DIN 603 Mushroom Head Square Neck Bolts



DIN 603 Mushroom Head Square Neck Bolts


d
M 5
M 6
M 8
M 10
M 12
M 16
b(l ≤ 125mm)
16
18
22
26
30
38
b(l>125mm ≤
200mm)
22
24
28
32
36
44
b(l>200mm)
-
-
41
45
49
57
d k max.
13.55
16.55
20.65
24.65
30.65
38.8
k max.
3.3
3.88
4.88
5.38
6,95
8,95
f max.
4.1
4.6
5,6
6,6
8.75
12.9
v max.
5.48
6.48
8.58
10.58
12.7
16.7
