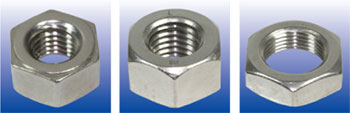

ANSI/AS ME B18.2.2 Heavy Hex Nuts and Heavy Hex Jam Nuts

Thread size

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

7/8

1

1 1/8

1 1/4

1 3/8

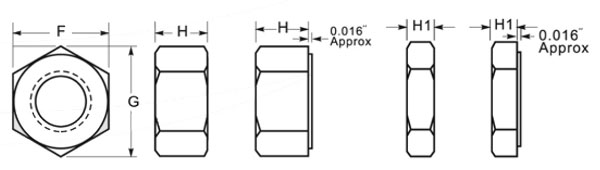

F max

0.500

0.562

0.688

0.750

0.875

0.938

1.062

1.250

1.438

1.625

1.812

2.000

2.188

G min

0.556

0.622

0.763

0.830

0.969

1.037

1.175

1.382

1.589

1.796

2.002

2.209

2.416

H

H.H

0.23

0.30

0.36

0.42

0.48

0.55

0.61

0.73

0.86

0.98

1.11

1.22

1.34

H1

H.J.

0.17

0.20

0.23

0.27

0.30

0.33

0.36

0.42

0.48

0.55

0.61

0.72

0.78

Thread size

1 1/2

1 5/8

1 3/4

1 7/8

2

2 1/4

2 1/2

2 3/4

3

3 1/4

3 1/2

3 3/4

4

F max

2.375

2.562

2.750

2.938

3.125

3.500

3.875

4.250

4.625

5.000

5.375

5.750

6.125

G min

2.622

2.828

3.035

3.242

3.449

3.862

4.275

4.688

5.102

5.515

5.928

6.341

6.755

H

H.H

1.47

1.59

1.72

1.84

1.97

2.20

2.45

2.70

2.95

3.19

3.44

3.69

3.94

H1

H.J.

0.84

0.91

0.97

1.03

1.09

1.20

1.45

1.58

1.70

1.81

1.94

2.06

2.19
