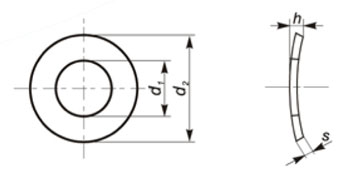

DIN 6796 Conical Spring Washers for Bolt / Nut Assemblies

Size

M2

M2.5

M3

M4

M5

M6

M8

M10

M12

M14

M16

M20

M22

M24

M27

M30

d₁ (H14)

2.2

2.7

3.2

4.3

5.3

6.4

8.4

10.5

13

15

17

21

23

25

28

31

d₂ (h14)

5

6

7

9

11

14

18

23

29

35

39

45

49

56

60

70

s

0.4

0.5

0.6

1

1.2

1.5

2

2.5

3

3.5

4

5

5.5

6

6.5

7

h

0.6

0.72

0.85

1.3

1.55

2

2.6

3.2

3.95

4.65

5.25

6.4

7.05

7.75

8.35

9.2
